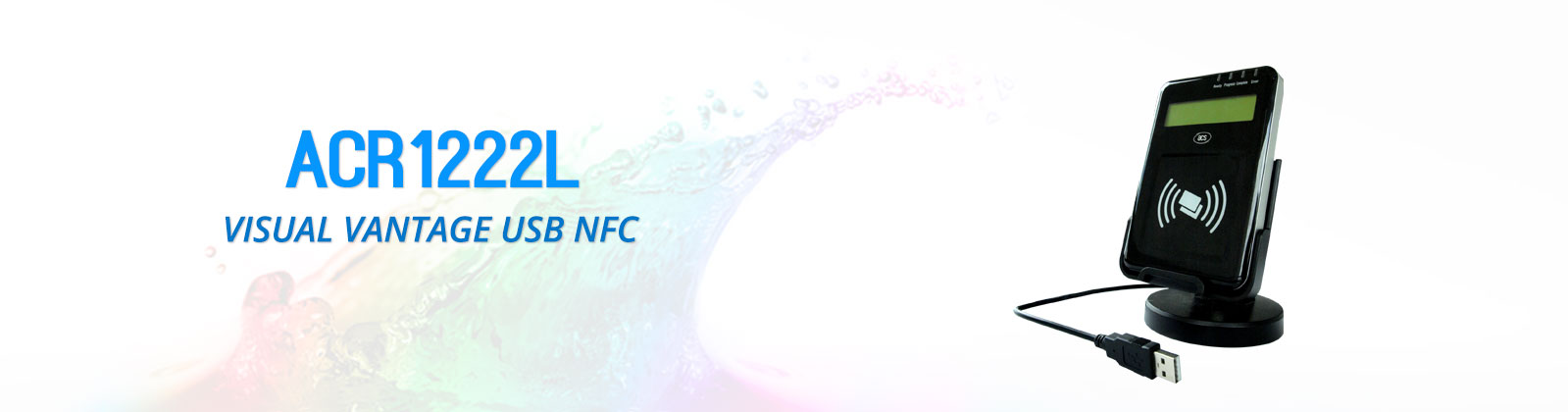

ACR1222L VisualVantage USB NFC Reader With LCD

ACR1222L is an LCD-equipped PC-Linked NFC Contactless Reader with USB as its host interface. It is developed based on the 13.56 MHz RFBSD Infotechnology and the ISO/IEC 18092 standard. ACR1222L can support ISO14443 Type A and B cards, Mifare, FeliCa and all 4 types of NFC tags.

With its PC/SC compliance, ACR1222L ensures easy upgrade of PC/SC smart card applications to improve user interaction. It is equipped with 4 LEDs, a buzzer and an LCD that provide users with clear indications of the reader or application status. The 2-line graphic LCD has multiple language support, including Chinese, English, Japanese and some European languages. It allows interactive operation such as scrolling up and down, left and right, etc. Moreover its three built-in SAM slots provide enhanced security during contactless operations.

Typical applications of ACR1222L include e-payment, loyalty programs and access control.

Features

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • Smart Card Reader:
    • Read/Write speed of up to 424 kbps
    • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
    • Support for ISO 14443 Part 4 Type A and B cards, Mifare, FeliCa and all four types of NFC (ISO/IEC 18092) tags
    • Built-in anti-collision feature (only one tag is accessed at any time)
    • Three ISO 7816 compliant SAM slots
  • Built-in Peripherals:
    • Two-line graphic LCD with interactive operability (i.e. scroll up and down, left and right, etc.) and multi-language support (i.e. Chinese, English, Japanese and several European languages)
    • Four user-controllable LEDs
    • User-controllable buzzer
  • USB Firmware Upgradability

Application

  • e-Government
  • e-Banking  and e-Payment
  • e-Healthcare
  • Transportation
  • Network Security
  • Access Control
  • Automatic Fare Collection
  • Public Transportation Terminal
  • Loyalty Program

Technical Specification

Dimensions

Main Body: 133.5 mm (L) x 88.5 mm (W) x 21.0 mm (H);
With Stand: 158.0 mm (L) x 95.0 mm (W) x 95.0 mm (H)
Weight
Main Body: 173 g With Stand: 415 g
Interface
USB 2.0 Full Speed
Operating Distance
Up to 50 mm (depends on the tag type)
Supply Voltage
Regulated 5V DC
Supply Current
300mA (maximum); 50mA (standby); 150mA (normal)
Operating Temperature
0-50°C
Operating Frequency
13.56 MHz

Smart Card Interface Support




  • ISO 14443 Type A & B
  • Mifare
  • FeliCa
  • 4 types of NFC (ISO/IEC 18092) tags

Compliance/Certifications


  • ISO 14443, CE, FCC, KC, VCCI, PC/SC, CCID, RoHS, USB Full Speed
  • Microsoft WHQL Windows 2000, XP, Vista, 7

Operating System Support





  • Windows 2000, 2003, XP, Vista, 2008, 7
  • Windows 2003 x64, XP x64, Vista x64, 2008 x64, 2008 R2 x64, 7 x64
  • Linux
  • Mac
  • Android 3.1 and above
Release Date
Drivers
OS Support
Version
File Size
USB Interface
15-Jun-2012
Win 2000, Win XP, Win Vista, Win 7, Win Server 2003, Server 2003 R2, Win Server 2008
1.0.4.0
3 MB
15-Jun-2012
Win XP x64, Win Vista x64, Win 7 x64, Win Server 2003 x64, Win Server 2003 R2 x64, Win Server 2008 x64, Win Server 2008 R2 x64
1.0.4.0
1 MB
12-Jun-2012
Win 2000, Win XP, Win XP x64, Win Vista, Win Vista x64, Win 7, Win 7 x64, Win Server 2003, Win Server 2003 x64, Win Server 2003 R2, Win Server 2003 R2 x64, Win Server 2008, Win Server 2008 x64, Win Server 2008 R2 x64
1.0.0.4
389 KB
15-Jun-2012
Linux, Mac 10.5, Mac 10.6, Mac 10.7
1.0.4
349 KB
10-Jul-2012
Linux
1.0.4
2 MB
15-Jun-2012
Mac 10.5, Mac 10.6, Mac 10.7
1.0.4
413 KB
12-Sep-2011
Win 2000, Win XP, Win XP x64, Win Vista, Win Vista x64, Win 7, Win 7 x64, Win Server 2003, Win Server 2003 x64, Win Server 2008, Win Server 2008 x64, Win Server 2008 R2 x64
1.0.0.1
2 MB
12-Sep-2011
Linux
1.0.0
74 KB
12-Sep-2011
Mac 10.5, Mac 10.6, Mac 10.7
1.0.0
43 KB
12-Jul-2012
Android 3.1, 3.2 and 4.0
1.1.1
394 KB
