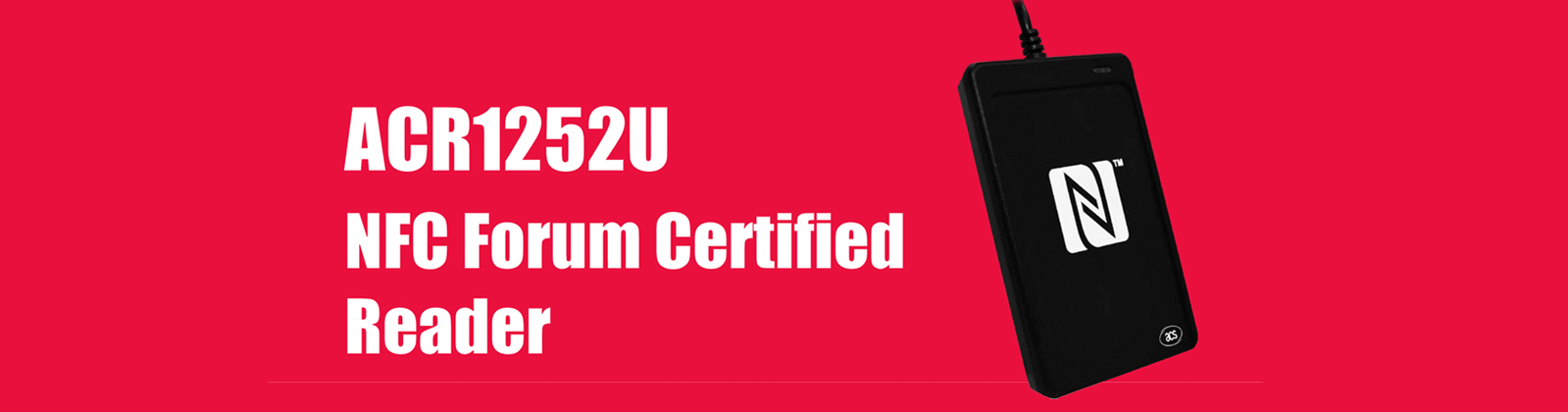

ACR1252U NFC Forum Certified Reader

ACR1252U NFC Forum Certified Reader

Overview

The ACR1252Uis a PC-linked NFC Reader that is NFC Forum–certified.

The ACR1252U runs on the 13.56 MHz contactless technology and supports ISO 14443 Type A and B cards, MIFARE®, FeliCa, ISO 18092–compliant NFC tags, and other NFC devices. It has an ISO 7816–compliant Class A SAM (Secure Access Module) slot which can be used together with a SAM card for key diversification and mutual authentication, providing high level of security in contactless transactions. Post-deployment firmware upgrade is also supported, eliminating the need for additional hardware modification.

ACR1252U is capable of the three modes of NFC, namely, Card Reader/Writer, Card Emulation and Peer-to-Peer Communication. These NFC features make the ACR1252U ideal for NFC applications like Smart Posters for advertising and marketing purposes with most NFC-enabled mobile phones and SIM cards in the market.

Features

  • USB Full Speed Interface
  • CCID-compliant
  • Smart Card Reader:
    1. o Contactless Interface:
      • Read/Write speed of up to 424 Kbps
      • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
      • Supports ISO 14443 Part 4 Type A and B cards, MIFARE Classic®, FeliCa, and all four types of NFC (ISO/IEC 18092 tags)
      • Built-in anti-collision feature (only one tag is accessed at any time)
      • NFC Support:
        • Card reader/writer mode
        • Peer-to-Peer mode
        • Card Emulation mode
    2. SAM Interface:
      • One SAM Slot
      • Supports ISO 7816-compliant Class A SAM cards
  • Built-in Peripherals:
    • User-controllable bi-color LED
    • User-controllable buzzer
  • Application Programming Interface:
    • Supports PC/SC
    • Supports CT-API (through wrapper on top of PC/SC)
  • USB Firmware Upgradeability
  • Supports Android™ 3.1 and later1
  • Compliant with the following standards:
    • EN 60950/IEC 60950
    • ISO 18092
    • ISO 14443
    • ISO 7816 Class A (SAM Slot)
    • NFC Forum Certification Mark
    • Felica Performance Certification
    • PC/SC
    • CCID
    • CE
    • FCC
    • RoHS 2
    • REACH
    • J-LIS (Japan)
    • VCCI (Japan)
    • MIC (Japan)
    • KC (Korea)
    • Microsoft® WHQL

Application

  • e-Government
  • e-Banking  and e-Payment
  • e-Healthcare
  • Transportation
  • Network Security
  • Access Control
  • Loyalty Program
  • Smart Poster/URL Marketing
  • P2P Communication

Technical Specification

ACR125u

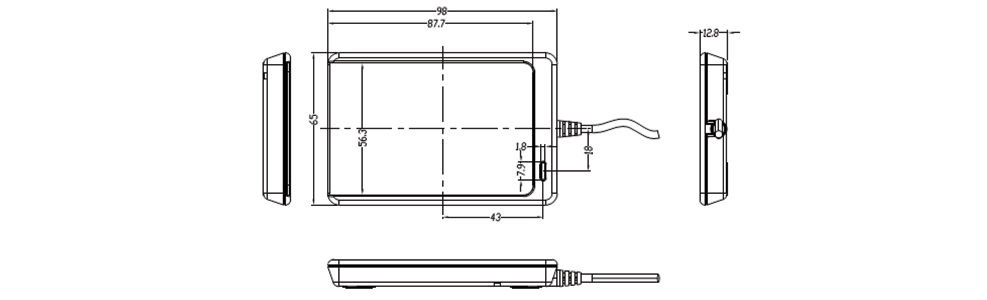

Physical Characteristics
Dimensions 98.0 mm (L) × 65.0 mm (W) × 12.8 mm (H)
Weight 81g
Color Matte Black
USB Host Interface
Protocol USB CCID
Connector Type Standard Type A
Power Source From USB port
Speed USB Full Speed (12 Mbps)
Supply Voltage 5 V
Supply Current Max. 200 mA
Cable Length 1 m, Fixed
Contactless Smart Card Interface
Standard ISO/IEC 18092 NFC, ISO 14443 Type A & B, MIFARE, FeliCa
Protocol ISO 14443 T=CL for ISO 14443-4–compliant cards
T=CL Emulation for MIFARE Classic, ISO 18092, FeliCa and NFC tags
Operating Frequency 13.56 MHz
Operating Distance Up to 50 mm (depending on tag type)
Smart Card Read/Write Speed 106 Kbps, 212 Kbps, 424 Kbps
Antenna Size 50 mm × 40 mm
SAM Card Interface
Number of Slot 1 Standard SIM-sized Card Slot
Standard ISO 14443 T=CL for ISO 14443-4–compliant cards
Protocol T=0;T=1
Smart Card Read/Write Speed 9.6 Kbps – 215 Kbps
Card Connector Type SAM Slot 0: Contact
Built-in Peripherals
LED 1 bi-color: Red and Green
Buzzer Monotone
Other Feature
Firmware Upgrade Supported
Application Programming Interface
PC-linked mode PC/SC
  CT-API (through wrapper on top of PC/SC)
Operating Conditions
Temperature 0 °C – 50 °C
Humidity Max. 90% (non-condensing)
MTBF 500,000 hrs

Frequently Asked Questions

The ACR1252U is NFC Forum-certified, runs on 13.56 MHz contactless technology, and has an ISO 7816-compliant Class A SAM slot for key diversification and mutual authentication in secure transactions.
It supports all three NFC modes: Card Reader/Writer, Card Emulation, and Peer-to-Peer Communication — making it suitable for applications like NFC smart posters that work with most NFC-enabled phones and SIM cards.
It supports ISO 14443 Type A and B cards, MIFARE Classic, FeliCa, and all four types of ISO/IEC 18092 NFC tags, with a read/write speed of up to 424 Kbps.
