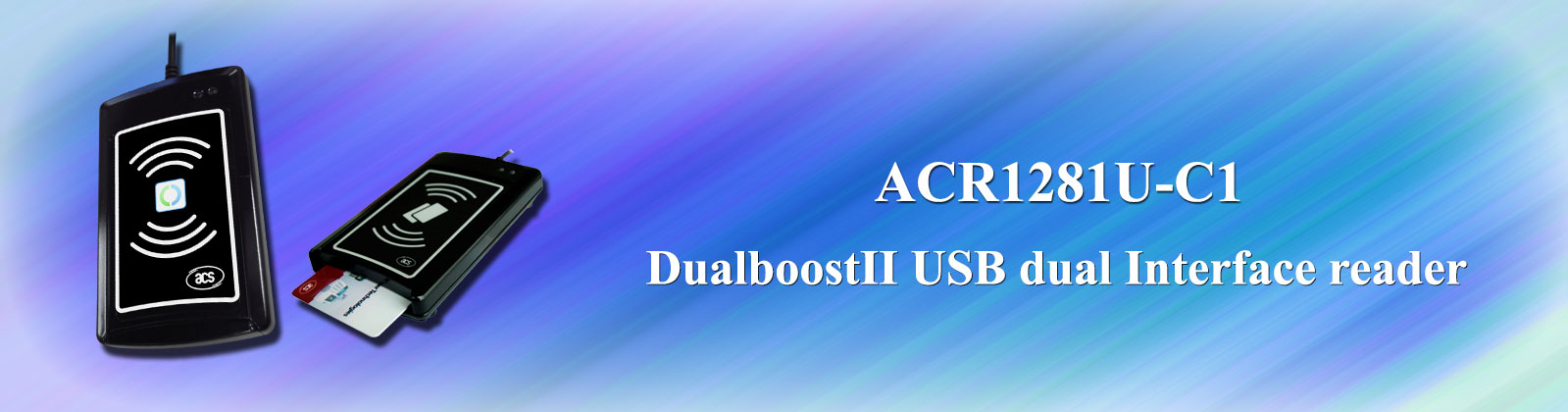

ACR1281U-C1 DualBoost II USB Dual Interface Reader

ACR1281U-C1 DualBoost II is the second generation of ACS's ACR128 DualBoost Reader. It is a dual interface reader that can access any contact and contactless smart cards following the ISO 7816 and ISO 14443 standards. ACR1281U-C1 DualBoost II enables one to integrate conventionally separate and independent applications for contact and contactless technologies into one device and one card; it can be used for online transactions to settle payments securely using credit cards, and it can also be used for topping up contactless cards via automated fare collection in public transport. It provides the perfect complement to the "All-in-one Card" concept that combines many kinds of smart card applications in just a single card.

The DualBoost Series has PC/SC compliance for both contact and contactless interfaces. It makes use of high-speed communication for contactless cards at a maximum of 848 kbps, which makes it suitable for highly demanding applications. It also provides intelligent support for hybrid and combi cards, such that it detects a contactless card even that has been incorrectly placed in the contact card slot. Lastly, the DualBoost has a built-in SAM slot for added security in both contact and contactless applications.

With additional features such as USB firmware upgradability, contact memory card support and extended APDU support, ACR1281U-C1 DualBoost II is a highly cost-effective, powerful all-in-one device that offers convenience and flexibility to many smart card applications.

Features

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • Contactless Smart Card Reader:
    • Read/write speed of up to 848 kbps
    • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
    • Supports ISO 14443 Part 4 Type A and B cards and Mifare series
    • Built-in anti-collision feature (only one tag is accessed at any time)
    • Supports extended APDU (max. 64 kbytes)
  • Contact Smart Card Reader:
    • Supports ISO 7816 Class A, B and C (5 V, 3V and 1.8 V)
    • Supports microprocessor cards with T=0 or T=1 protocol
    • Supports memory cards
    • ISO 7816 compliant SAM slot
  • Application Programming Interface:
    • Supports PC/SC
    • Supports CT-API (through wrapper on top of PC/SC)
  • Built-in Peripherals:
    • Two user-controllable LEDs
    • User-controllable buzzer
  • USB Firmware Upgradability

Application

  • e-Government
  • e-Banking  and e-Payment
  • e-Healthcare
  • Transportation
  • Network Security
  • Access Control
  • Automatic Fare Collection
  • Public Transportation Terminal
  • Loyalty Program

Technical Specification

Dimensions
120.5 mm (L) x 72.0 mm (W) x 20.4 mm (H)
Weight
150g
Interface
USB Full Speed
Operating Distance
Up to 50 mm (depends on the tag type)
Supply Voltage
Regulated 5V DC
Supply Current
200mA (operating); 50mA (standby)
Operating Temperature
0-50°C
Operating Frequency
13.56 MHz

Smart Card Interface Support





  • Contact
    • ISO 7816 Class A, B and C (5V, 3V, 1.8V)
  • Contactless
    • ISO 14443 Type A & B
    • Mifare

Compliance/Certifications


  • ISO 14443, ISO 7816, CE, FCC, PC/SC, CCID, CE, FCC, RoHS, USB Full Speed
  • Microsoft  WHQL: 2000, XP, Vista, 7, 8, Server 2012

Operating System Support






  • Win 2000, Win 2003, Win 2003 R2, Win XP, Win Vista, Win 2008, Win 7, Win 8
  • Win 2003 x64, Win 2003 R2 x64, Win XP x64, Win Vista x64, Win 2008 x64, Win 2008 R2 x64, Win 7 x64, Win 8 x 64, Win 2012 x64
  • Mac
  • Linux
  • Android 3.1 and above
Release Date
Drivers
OS Support
Version
File Size
USB Interface
03-Jan-2013
Win 2000, Win XP, Win Vista, Win 7, Win 8, Win Server 2003, Server 2003 R2, Win Server 2008
1.0.2.0
3 MB
03-Jan-2013
Win XP x64, Win Vista x64, Win 7 x64, Win 8 x64, Win Server 2003 x64, Win Server 2003 R2 x64, Win Server 2008 x64, Win Server 2008 R2 x64, Win Server 2012 x64
1.0.2.0
1 MB
21-Dec-2012
Win 2000, Win XP, Win XP x64, Win Vista, Win Vista x64, Win 7, Win 7 x64, Win 8, Win 8 x64, Win Server 2003, Win Server 2003 x64, Win Server 2003 R2, Win Server 2003 R2 x64, Win Server 2008, Win Server 2008 x64, Win Server 2008 R2 x64, Win Server 2012 x64
1.0.0.2
341 KB
15-Jun-2012
Linux, Mac 10.5, Mac 10.6, Mac 10.7
1.0.2.0
1 MB
03-Jan-2013
Win XP x64, Win Vista x64, Win 7 x64, Win 8 x64, Win Server 2003 x64, Win Server 2003 R2 x64, Win Server 2008 x64, Win Server 2008 R2 x64, Win Server 2012 x64
1.0.4
349 KB
10-Jul-2012
Linux
1.0.4
2 MB
15-Jun-2012
Mac 10.5, Mac 10.6, Mac 10.7
1.0.4
413 KB
12-Sep-2011
Win 2000, Win XP, Win XP x64, Win Vista, Win Vista x64, Win 7, Win 7 x64, Win Server 2003, Win Server 2003 x64, Win Server 2008, Win Server 2008 x64, Win Server 2008 R2 x64
1.0.0.1
2 MB
12-Sep-2011
Linux
1.0.0
62 KB
12-Sep-2011
Mac 10.5, Mac 10.6, Mac 10.7
1.0.0
35 KB
12-Jul-2012
Android 3.1, 3.2 and 4.0
1.1.1
394 KB
