FEC AERPOS 3615

FEC is proud to introduce AerPOS, the most beautiful and powerful all-in-one POS terminal in FEC’s line of products. AerPOS features an ultra slim display,sleek chassis and small footprint design that any business owner would be proud to own. Combined with an Intel® Core i3 or i5 processor, AerPOS can support complicated data processing and heavy loading retail environments

FEC AERPOS 3615

Feature Gallery

Supports Intel® vPro Technology

Intel vPro is the combination of processor technologies, hardware enhancements, management features and security technologies that allows remote access to the PC (including monitoring, maintenance, and management) independent of the state of the PC operating system.

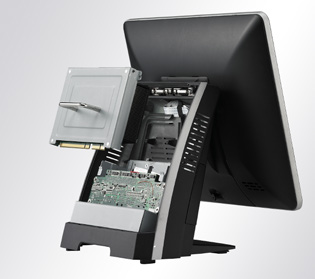

One-step Quick Replacement of Key Components for Easy Upgrades

Hardware platform can be easily upgraded by swapping out key components such as motherboard and HDD

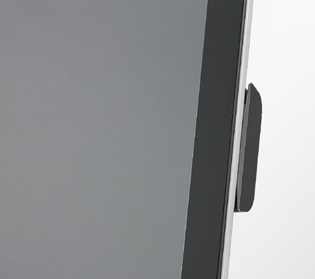

Ultra Slim Magnetic Stripe Reader Module

MSR reader measures one centimeter in thickness when installed

Specification

Modal
Model
Model
Processor Intel® Celeron® G540, 2.5Ghz
Intel® Core i3-2120, 3.3Ghz
Intel® Core i5-2400S, 2.5Ghz		 Intel® Celeron® B810, 1.6Ghz
Intel® Core i5-2510E, 2.5Ghz (vPro)
System Memory 2GB Standard, Maximum 8GB (1x204-pin DDR3)
Power Supply 150W (12V / 12.5A) External Power Supply
Storage Device 1 x 2.5” SATA HDD
Chipset Intel® H61 Intel® QM67
Speaker Internal Speaker 2W x 2
Construction Aluminum Die-casting + Plastic + Glass
Housing Color Black with Silver Trim or White with Silver Trim
Touch LCD Display
Size / Resolution 15" TFT-LCD/ 1024 X 768
Brightness (Backlight Type) & Touch Screen 250 cd/m2 (CCFL); 5-Wire Resistive Touch
350 cd/m2 (LED) with Tempered Glass; Projected Capacitive Touch
I/O Ports
Serial Port 4 x External: COM1, COM2 (DB9), COM3, COM4 (RJ-45)
USB Port 5 x External (4 Rear + 1 Side)
Cash Drawer Port 1 x RJ11 (12V)
LAN Port 1 x RJ45 Giga LAN
Audio Port 1 x Line Out, 1 x Mic In
VGA Port 1 x VGA
DC Output 1 x 12V DC Jack 2.5 mm
Optional I/O Board
Type A Serial Port: COM5 (DB9); 12V Powered USB Port x 1; USB x 2
OS Supported
Windows Windows XP, POSReady 2009, Windows 7, POSReady 7
Linux Per Request
Physical Dimensions
Dimensions (W x H x D) 367 x 352 x 223 mm
Environment
EMI / Safety CE, FCC Class A
Operating Temperature 0˚C ~ 40˚C (32˚F ~ 104˚F)
Storage Temperature -10˚C ~ 55˚C (14˚F ~ 131˚F)
Relative Humidity 10% ~ 90% (Non-condensing)
Optional Peripherals
Magnetic Stripe Card Reader Integrated MCR Module (Single / Dual / Triple Track Selectable)
2nd Display Integrated 11.6” or 15” LCD Display (Touch Screen Support for 15” Only)
Customer Display Integrated LCM / VFD Customer Display
Wireless LAN Integrated 802.11 b/g/n Wireless Module
Identification Devices RFID 13.56 MHz / Fingerprint Reader / i-Button
