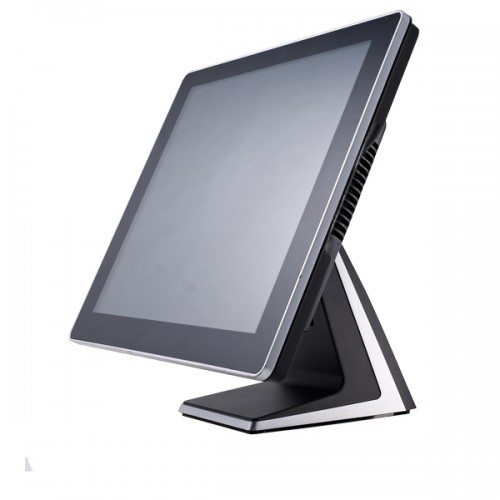

FEC PP-9635

We took the best of AerPOS and AerMonitor and created the slimmest Panel PC on the market. Featuring Intel® Celeron® J1900 quad-core CPU, the fan-less 15” AerPPC series is the perfect POS and KIOSK solution. The entire POS component is built into the display unit, making this a perfect standalone product or a part of sophisticated solution. Inheriting the modular design of the AerPOS family, add-on devices can be upgraded at any time.

System Configuration
Processor	Intel Celeron J1900 Up to 2.42GHz
System Memory	2G Standard, max 8GB (1 x 204-pin DDR3L)
Storage Device	1 x 2.5" SATA HDD or SSD
Power Supply	150W External Power Adapter
Graphics	Intel HD
Constrution	Aluminum Die-casting + Plastic (with Bezel)
Speaker	Internal Speaker 2W x 2
Housting Color	Black
Touch LCD Display
Size / Resolution	15" TFT-LED / 1024 x 768
Brightness (Backlight Type) & Touch Screen	350 cd/m2 (LED); 5-Wire Resistive Touch
I/O Ports
Serial Port	1 x External: COM1(RJ45) with RI / 5V / 12V Selectable
USB	5 x External (Rear USB 3.0 x 1; USB 2.0 x 3; USB 2.0 x 1 side)
Powered USB Port	1 x 24V
Cash Drawer Port	1 x RJ11 (12V / 24V)
LAN Port	1 x RJ45 Giga LAN
Expansion Slot	1 x mini PCI-E(Internal / USB + PCI-E x 1)
Video Port	1 x port VGA
DC Input	1 x 12V
DC Output	1 x 12V DC Jack 2.5mm
Optional I/ O Board
Type A	Serial Port: COM 2 & COM 4 (DB9) with RI / 5V 12V Selectable
Type B	Powered USB: 2 x 12V without 12V DC Jack
Type C	USB Port x 2
OS Supported
Windows	Windows 7, Windows Wmbedded POSReady 7, Windows 8.1 Embedded 8.1 Industry
Dimensions & Weight
Product	Without Base: 367mm (W) x 35mm (H) x 315mm (D), 5.3kg; With Base: 367mm (W) x 195mm (H) x 315mm (D), 7 kg
Carton	548mm (W) x 515mm (H) x 352mm (D), 8kg
Operation Conditions
Operating Temperature	0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature	-20°C ~ 60°C (-4°F ~ 130°F)

System Configuration

Processor

Intel Celeron J1900 Up to 2.42GHz

System Memory

2G Standard, max 8GB (1 x 204-pin DDR3L)

Storage Device

1 x 2.5" SATA HDD or SSD

Power Supply

150W External Power Adapter

Graphics

Intel HD

Constrution

Aluminum Die-casting + Plastic (with Bezel)

Speaker

Internal Speaker 2W x 2

Housting Color

Black

Touch LCD Display

Size / Resolution

15" TFT-LED / 1024 x 768

Brightness (Backlight Type) & Touch Screen

350 cd/m2 (LED); 5-Wire Resistive Touch

I/O Ports

Serial Port

1 x External: COM1(RJ45) with RI / 5V / 12V Selectable

USB

5 x External (Rear USB 3.0 x 1; USB 2.0 x 3; USB 2.0 x 1 side)

Powered USB Port

1 x 24V

Cash Drawer Port

1 x RJ11 (12V / 24V)

LAN Port

1 x RJ45 Giga LAN

Expansion Slot

1 x mini PCI-E(Internal / USB + PCI-E x 1)

Video Port

1 x port VGA

DC Input

1 x 12V

DC Output

1 x 12V DC Jack 2.5mm

Optional I/ O Board

Type A

Serial Port: COM 2 & COM 4 (DB9) with RI / 5V 12V Selectable

Type B

Powered USB: 2 x 12V without 12V DC Jack

Type C

USB Port x 2

OS Supported

Windows

Windows 7, Windows Wmbedded POSReady 7, Windows 8.1 Embedded 8.1 Industry

Dimensions & Weight

Product

Without Base: 367mm (W) x 35mm (H) x 315mm (D), 5.3kg; With Base: 367mm (W) x 195mm (H) x 315mm (D), 7 kg

Carton

548mm (W) x 515mm (H) x 352mm (D), 8kg

Operation Conditions

Operating Temperature

0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~ 130°F)
