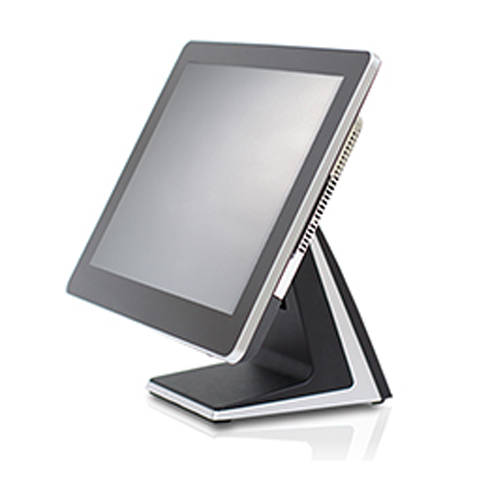

FEC PP-9645

We aim to exceed your expectations by providing high quality, reliable products with state of the art designs. Featuring brand new AerPPC drawer design, the main unit can be easily removed for maintenance while maintaining a sleek and stylish profile. The iconic AerPPC modular system provides outstanding flexibility, serviceability, efficiency and reliability to minimize your TCO (Total Cost of Ownership).

FEC PP-9645

Feature Gallery

Equipped with 2.5” SATA drive slot and onboard M.2 SSD

Smart Fan detects CPU temperature

Traditional Bezel & True Flat

Standard VESA wall mount option

Improved Power Button

One touch access to remove the main unit.

Specification

System Configuration
Processor Intel Celeron G1820TE 2.20GHz
Intel Core i3-4330TE 2.40GHz
Intel Core i5-4570TE 3.30GHz
System Memory 1 x 2GB Standard, max 8GB (2 x 8GB 204-pin DDR3L-1600)
Storage Device 1 x 2.5" SATA HDD or SSD
Second Storage Optiona M.2 Storage Device
Power Supply 150W External Power Adapter
Constrution Aluminum Die-casting + Plastic (with Bezel)
Speaker Internal Speaker 2W x 2
Housting Color Black
Touch LCD Display
Brightness (Backlight Type) / Resolution 350 cd/m2 (LED) / 1024 x 768
Touch 5-Wire Resistive Touch
I/O Ports
Serial Port 1 x External: COM1(RJ45) with RI / 5V / 12V Selectable
USB 5 x External (Rear USB 2.0 x 2; USB 3.0 x 2; USB 2.0 x 1 side)
Powered USB Port 1 x 24V
Cash Drawer Port 1 x RJ11 (12V / 24V)
LAN Port 1 x RJ45 Gigabit LAN
Video Port 1 x VGA ; 1 x HDMI
DC Power 1 x input 12V DC/ 1 x 12V DC Jack 2.5mm
Wifi Optional 802.11 b / g / n
Optional I/ O Board
Type C 2 x Serial Port: COM 2 & COM 3 (RJ45) RI / 5V 12V Selectable; Powered USB port: 1 x 12V
Type G Powered USB port: 3 x 12V
Type K Powered USB Port:2 x 12V; 1 x (DB9) COM 2, RI / 5V / 12V Selectable
OS Supported
Windows Windows 7, Windows Wmbedded POSReady 7, Windows 8.1 Embedded 8.1 Industry
Dimensions & Weight
Product Without Base: 364mm (W) x 291mm (H) x 53.9mm (D), 5.2kg; With Base: 364mm (W) x 329mm (H) x 210mm (D), 6.8 kg
Carton 477mm (W) x 508mm (H) x 307mm (D), 10kg
Operation Conditions
Operating Temperature 0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature -20°C ~ 60°C (-4°F ~ 130°F)
