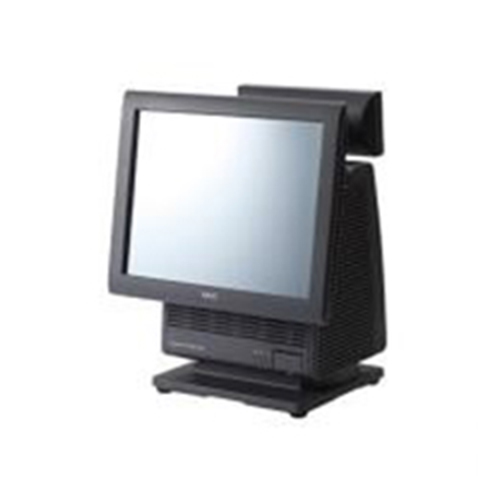

NEC TWINPOS G5

TWINPOS G5 lowers costs in your retail operations with TCO-slashing serviceability and powerful energy-efficient performance – made possible by NEC leading-edge technology that flexibly satisfies the highest expectations of demanding retailers worldwide. Advances include tool-free component replacement, the smallest footprint in its class, a choice of four energy-efficient Intel CPUs (Core™ i, Atom™ or Celeron®), fanless option, a guaranteed 5-year supply of key components, remote maintenance capabilities, and much more. Discover the clear advantages of TWINPOS G5

NEC TWINPOS G5

Feature Gallery

I/O board

HDD

Power supply

Touch panel

Specification

System Configuration
  Standard Fanless
Processor Celeron 1.86GHz
Core i3 2.13GHz
Intel Core i5 2.04GHz		 Atom™ D525 1.80GHｚ
Main Memory DDR3 1GB to 4GB
Hard disk drive/solid state drive 3.5” SATA HDD (320GB or higher) 2.5” SATA HDD (320GB or higher)
SSD (8GB or higher)
Operating system preinstalled Windows® Embedded POSReady 2009
Operating system supported (for non-OS model) Windows® XP (SP3/32-bit), Windows® 7 (32-bit), Windows® Embedded POSReady 2009
Network 1000BASE-T/100BASE-TX/10BASE-T
I/O Board DC OUT Plus Standard Standard
Display VGA x 1
PS/2 2
Audio Line-in x 1, microphone x 1, line-out/headphone x 1
COM 3
USB 2.0 3 (front x1) 7 (front x1) 7 (front x1)
12V powered USB 1 0 0
Powered COM (5V or 12V) 3
24V DC outlet (for printer, max 3A) 1 0 0
Cash Drawer 2
Parallel 1
Operator display 12.1" or 15" LCD (XGA)
Customer display (optional) 12.1" LCD (XGA) or 20x2 VFD
Weight (without customer display) 12”:11.4kg (25lbs)
15”:12.1kg (27lbs)
Dimensions (W x D x H mm) 12”:300 x 235 x 403
15”:363 x 239 x 415
Power consumption (typical operation) Celeron,OP15",CU12",MSR:60W
Max configuration: 180W
Max power capacity:250W		 Atom, OP15", MSR: 30W
Max configuration: 70W
Max power capacity:100W
Optional software Remote maintenance solution interface
