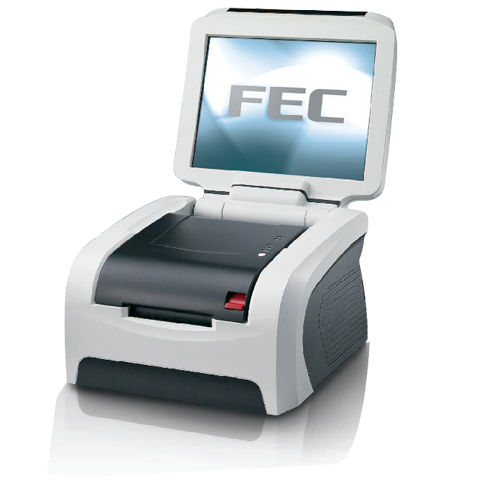

Retail Smart is a fan-less, compact touch POS terminal housed in aluminum and plastic for both high reliability and mobility. Retail Smart incorporates state-of-theart design concept to integrate various peripherals into one seamless look.
Model | MP-2410 | ||
---|---|---|---|
Processor | Intel® Atom™ N270, 512K L2 Cache, 1.6Ghz, 533Mhz FSB | ||
System Memory | 1 GB Standard, Maximum 2 GB (1 x 200-pin DDR2) | ||
Power Supply | 120W (24V / 5A) ; 180W (24V / 7.5A) External Power Adaptor | ||
Storage Device | 1 x 2.5” SATA HDD (Swappable) | ||
2nd Storage Device | 1 x CF II | ||
Speaker | Internal Speaker 2W x 2 | ||
Construction | Aluminum Die-casting + Plastic | ||
Housing Color | Black + White (Standard) / Black | ||
Touch LCD Display | |||
Size / Resolution | 10.4” LED LCD 800 x 600 | 10.4” LED LCD 800 x 600 | 10.4” TFT 1024 x 768 |
Brightness (Backlight Type) | 250 cd/m2 (LED) | 400 cd/m2 (LED) | 350 cd/m2 (LED) |
Input Interface | TTL | LVDS | LVDS |
Touch Screen | 5-Wire Resistive Touch | 5-Wire Resistive Touch | 5-Wire Resistive Touch |
I/O Ports | |||
Serial Port | 3 x Internal: COM5 (Printer), COM3 (LCM), COM6 (Reserved) | ||
3 x External: COM1, COM2, COM4 (DB9) | |||
USB Port | 4 x External (2 Rear, 2 Hidden) | ||
Cash Drawer Port | 1 x RJ11 (12V / 24V) | ||
Keyboard / Mouse | 1 x PS/2 | ||
LAN Port | 1 x RJ45 Giga LAN | ||
Video | Port 1 x VGA | ||
Audio | Port 1 x Line-out | ||
DC Output | 1 x 12V DC Jack 2.5 mm | ||
OS Supported | |||
Windows | Windows XP, Windows XPE, POSReady 2009, Windows 7 | ||
Linux | Per Request | ||
Physical Dimensions | |||
Dimensions (WxHxD) | 260 x 289 x 185 mm (Display Folded); 260 x 289 x 343 mm (Display Up) | ||
Environment | |||
EMI / Safety | CE, FCC Class A | ||
Operating Temperature | 0°C ~ 40°C (32°F ~ 104°F) | ||
Storage Temperature | -10°C ~ 55°C (14°F ~ 131°F) | ||
Relative Humidity | 10% ~ 90% (Non-condensing) | ||
Optional Peripherals | |||
Magnetic Stripe Card Reader | Integrated MCR Module (Single / Dual / Triple Track Selectable) | ||
IC Card Reader | Integrated Available | ||
LCM | Integrated LCM Module (192 x 32 Graphic/ 20 x 2 Characters) | ||
Wireless Module | Wi-Fi Module |
